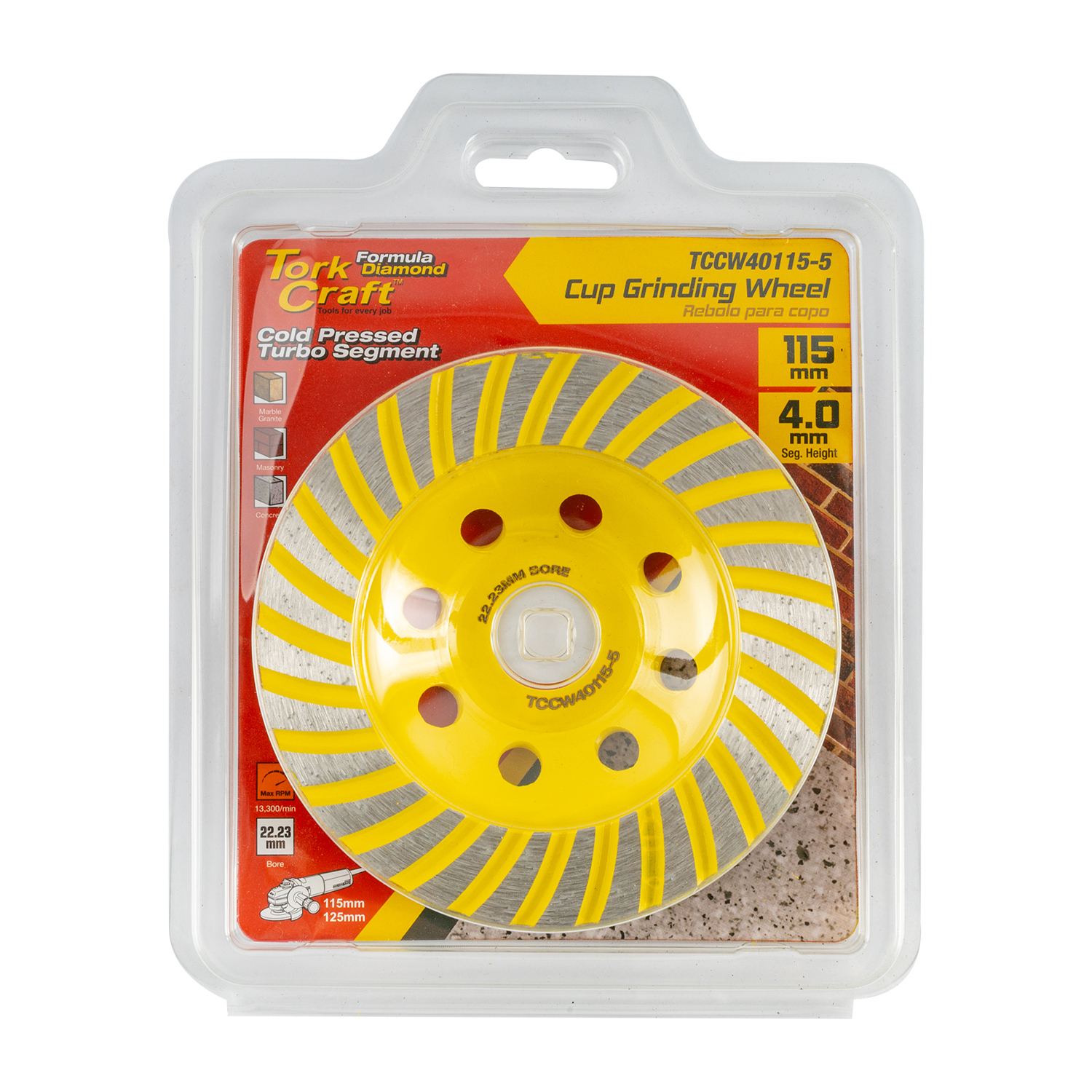

Tork Craft Dia. Cup Wheel 115Mm X 22,23Mm Turbo Cold Pressed Economy

Description

Cup Diameter: 115mm
Arbor: 22.23mm
Max RPM: 13 300
Segment Configuration: Turbo
Classification: Yellow (Standard)

This cold-pressed, turbo-style diamond cup wheel is an economical yet high-performing tool, designed for fast and
smooth grinding. With a 115mm diameter and a 22.23mm bore, it is compatible with most standard angle grinders,
offering versatility for a range of applications. The continuous, segmented turbo rim provides a consistent and
aggressive grinding action while minimizing chipping, making it ideal for tasks that require both rapid material
removal and a high-quality finish. Whether you’re smoothing concrete floors, preparing surfaces for new
installations, or working on stone and masonry, this durable and affordable wheel is a great choice for professional
contractors and DIY enthusiasts seeking a reliable and efficient tool.

Application:

• Ideal for polishing: concrete, granite, masonry & other construction material.
• Smooth uneven joints and surfaces on concrete & stones.
• Preparation of surface for polishing application on granite
• Surface clean-up & levelling

Description	Specification
Packaging Type	Clamp shell blister
Material	Body: 65MN Steel Segments: Diamond Segments
Cup Diameter	115mm
Cup body thickness	2.0mm
Segment height	4.0mm
Segment width	7mm
Segment length	20mm
Segment Configuration	Turbo
Bond Type	Cold Pressed
Max RPM	13 300
Recommended accessories/tools	115/125mm Angle Grinder
Country of Origin	Republic of China (PRC)
Warranty	Consumable product excluded from warranty unless confirmed production error.
Content	1 x Diamond cup wheel



Bulk

Inner Box
Qty (box/pack)	25
Outer Box
Qty (box/pack)	50

Features

• Wet/Dry grinding applications
• Durable cup shape construction
• 8 x Vent holes
• Holes to aid with cooling and dust extraction

• Recommended to use with a compatible dust shroud and vacuum system to be fitted to a 115mm/125mm angle grinder.
• Screw the angle grinder auxiliary handle on either left or right side of the gear box for user comfort. Ensure the auxiliary handle is fitted correctly to the angle grinder.
• Adjust the angle grinder safety guard to allow for maximum operator protection.
• Tighten the guard hex screw securely, using the provided hex wrench to fasten.
• Cup wheel with a 22.23mm Bore: Press & hold down the spindle lock of the angle grinder, loosen and remove the outer (top) flange nut. Position the diamond cup wheel over the M14 ensuring the inner (bottom) flange nut remains intact. Screw back on the outer (top) flange and use an angle grinder wrench to tighten the outer (top) flange.
