Tork Craft Mini Grinding Wheel 22.2Mm

Description

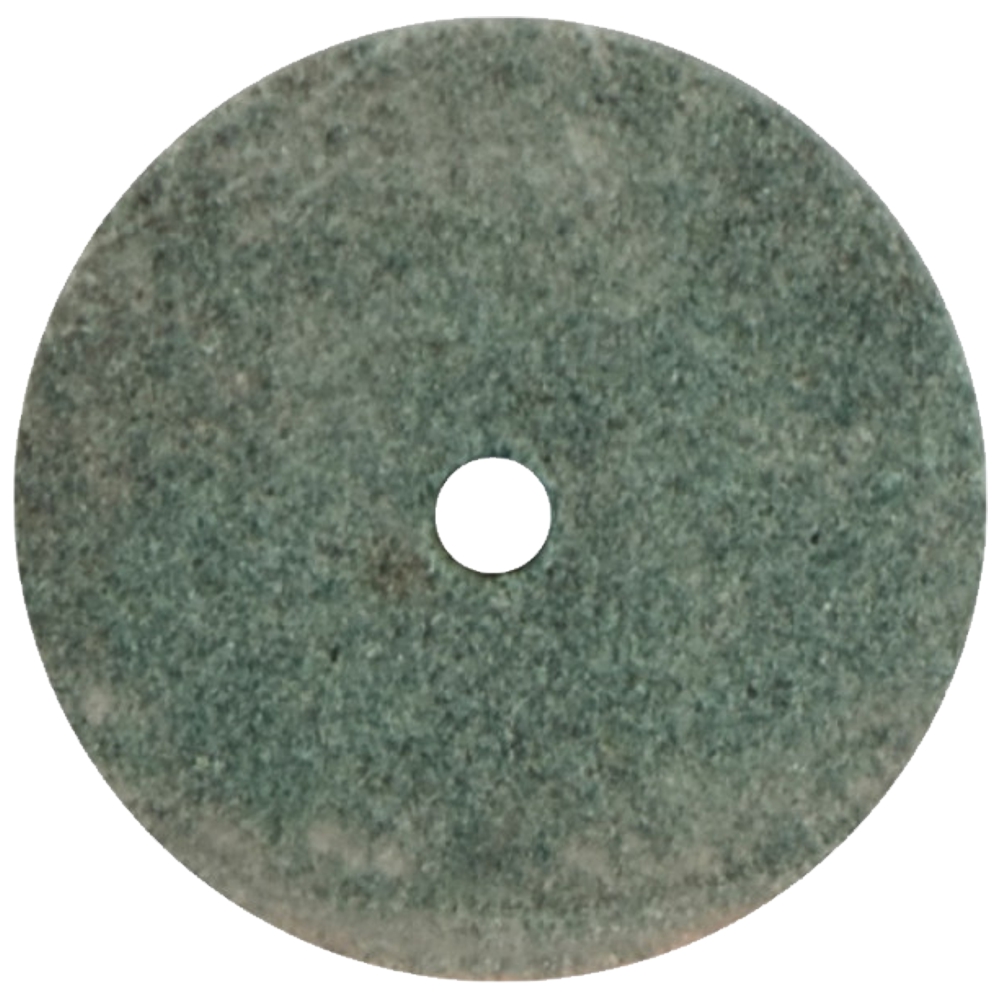

The wheel is made of bonded Silicon Carbide and has a distinctive light green
colour.

It has a very high abrasive power and is mostly used on mineral based materials – stone,
porcelain, ceramic, glass etc.

Application – stone:

• Engraving
• Smoothing/finishing
• Carving

It can also be used on non-ferrous metals, such as aluminium, copper, brass

Application – non-ferrous metals:

• Sharpening
• Engraving
• Deburring
• Precision grinding

Application:

• Max rated RPM: 35 000 RPM
• Sharpening chisels, knife edges cutting tools and more.
• Removes sharp edges on cut metal parts.
• Refines contours in metal or stone.
• Removes rust, weld spatter, and surface coating.
• Ceramics: 20 000 – 30 000 RPM
• Glass: 20 000 – 30 000 RPM
• Stonework: 20 000 – 25 000 RPM

Grinding non-ferrous metals tend to gall and clog up
the grinding point. It is recommended to make use of a stone dresser

TC08424 to clean it up, should it become clogged.

Description	Specification
Packaging Type	Sandwich packaging
Package Dimensions	120(L) x 62(W) x 22(H)mm
Package Weight	8.6g
Product Dimensions	3.2(T) x Ø20mm
Product Weight	3.6g
Material	Brown aluminium Oxide
Stone Diameter	Ø20mm
Shape	Wheel
Recommended accessories/tools	Mini rotary tool
Country of Origin	Republic of China (PRC)
Warranty	6 Months
Content	2 x 20mm Mini Grinding Wheel

Features:

• Hard bonded structure.
• Precise control in small areas.
• Durable and holds shape longer.
• Works on hard and dense materials.
• Excellent for fine detail finishing where bench grinders are too large.
• Heat-Resistant.

The shank of the rotary cutter is securely locked in place by fitting
it in the corresponding collet or making use of a keyless chuck.

For improved engraving accuracy, make use of a flexible
shaft connected to the rotary engraver.

Rotation speed:

Most rotary tools have the benefit to adjust the rotation speed. Many tool bits that fit in rotary tools have a maximum speed setting. This can normally be found on the packaging.

All materials react differently to speed and will need the tool bit to rotate slower.
It is recommended to start using accessories on the slower speed first, before increasing the speed as needed.

The diameter of the tool bit fitted also determines the rotation speed. The larger the diameter, the slower the speed. If the speed is set too high, it could bend the shank/shaft resulting in injury.
