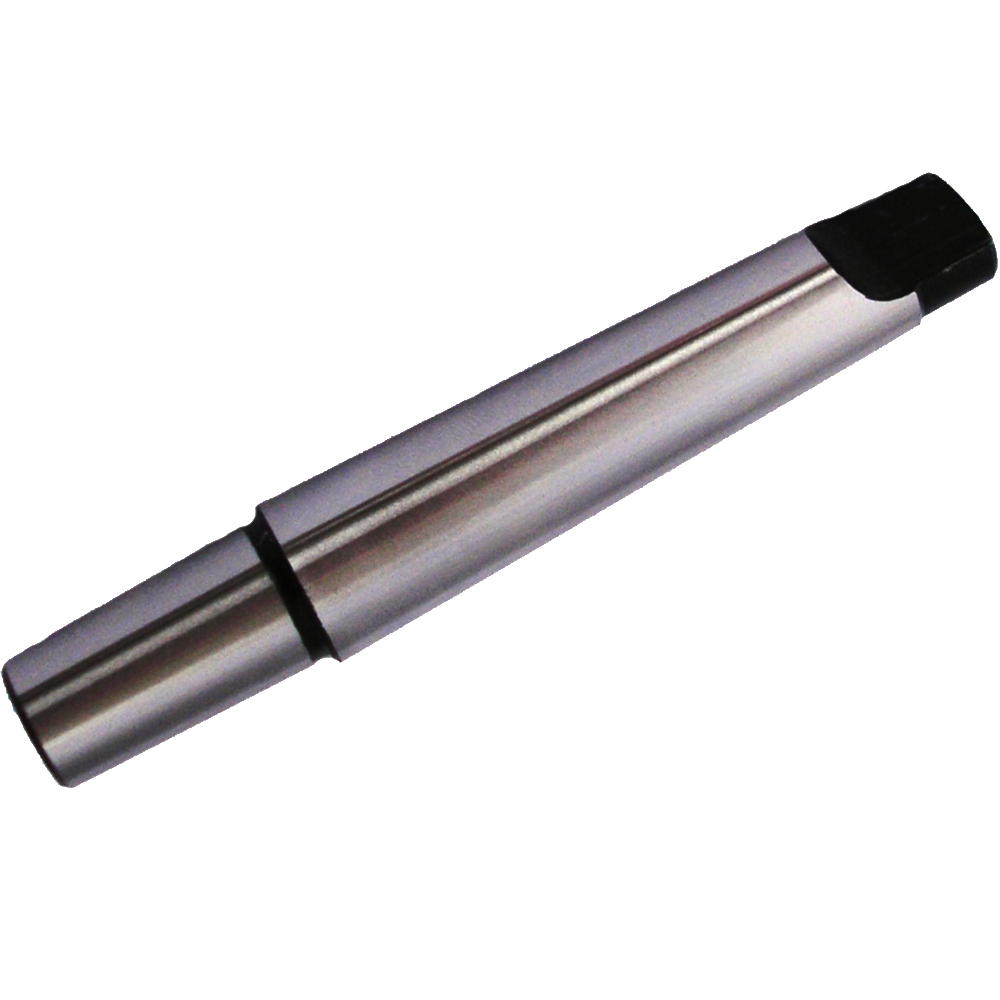

Tork Craft Taper Adaptor Mt2 – B16 Cmmt Morse Taper

Description

Tork Craft Taper Adaptor — MT2 to B16 (Morse Taper)

Mount B16-fit drill chucks to machines with an MT2 (Morse Taper No.2) spindle or arbor. This precision MT2 → B16 adaptor features hardened, ground tapers for concentric running on drill presses, lathes (tailstocks) and milling machines in drill mode.

Specifications

Description	Spec
Brand	Tork Craft
Model / Cat No.	CMB16
Product Type	Taper adaptor
Input Taper (Machine Side)	MT2 (Morse Taper #2), male
Output Taper (Chuck Side)	B16, male
Material	Hardened, precision-ground steel
Finish	Ground, smooth seating surfaces
Typical Uses	Adapting B16 drill chucks to MT2 drill presses, lathes (tailstock), mills (drill mode)

Features

• Conversion: MT2 male shank to B16 male taper for B16-bore chucks.
• Precision-ground tapers for accurate fit and reduced run-out.
• Hardened steel construction for durability under workshop use.
• Industry standard geometry compatible with MT2 spindles/arbors.
• Smooth surface finish to seat and release cleanly.

Benefits

• Versatility: fit common B16 drill chucks to MT2 machines.
• Accuracy: concentric seating improves hole quality.
• Quick setup: drop-in adaptor—no special tools required for fitting.

Extra Information

• Clean and degrease both tapers before assembly; any debris reduces holding power.
• Seat the chuck with a firm hand press; avoid striking directly on the chuck body.
• Remove using the machine’s taper-eject feature or the correct drift/wedge.

Safety

• Disconnect power before installing/removing chucks or adaptors.
• Ensure tapers are fully seated; do not side-load small drills excessively.
• Use rotary drilling only—do not use hammer/impact with taper-mounted chucks.
• Wear eye protection; secure the workpiece properly.
