Aircraft Elbow W/O-Ring 8Mm-1/4 M Pu Hose Fitting
R24,00

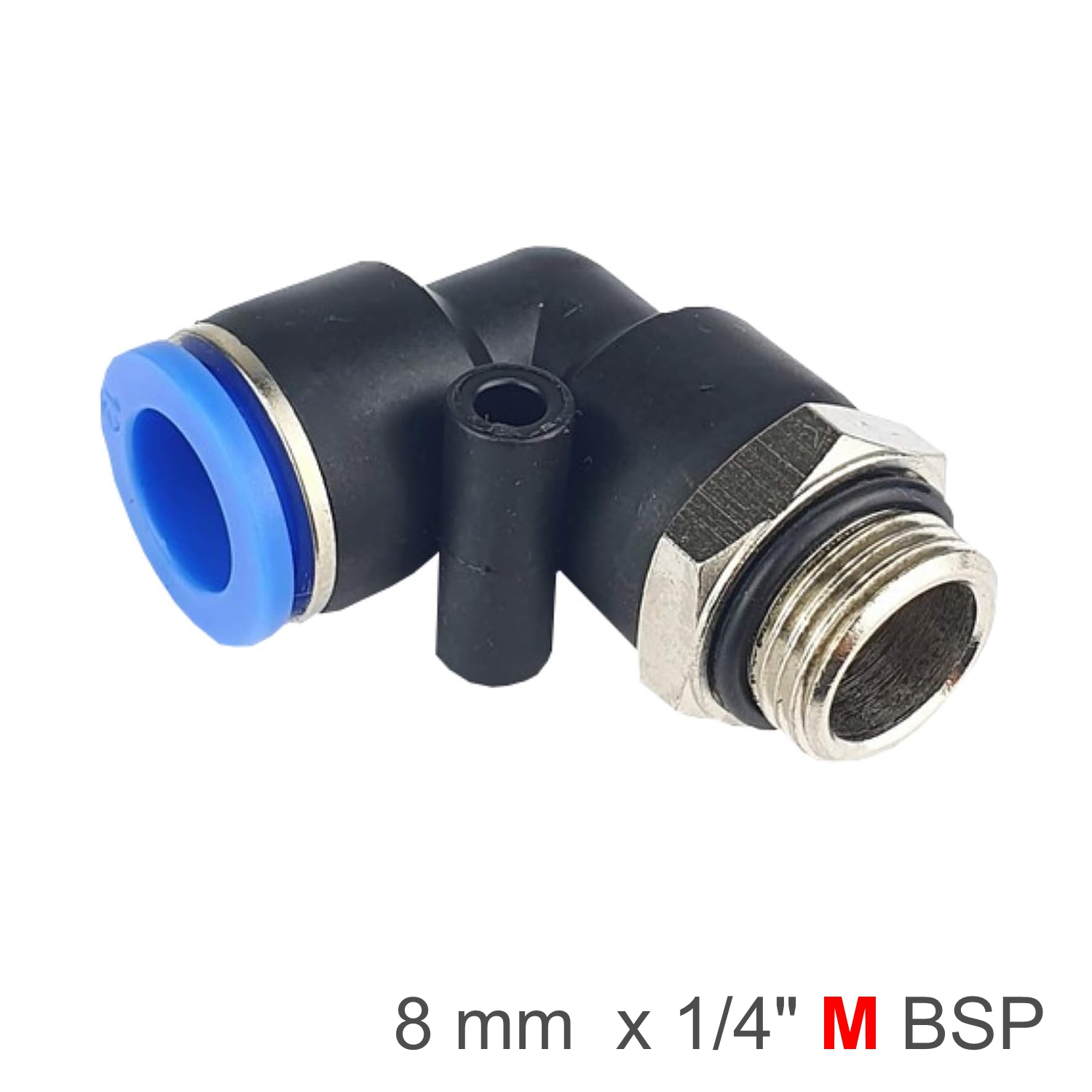

AirCraft Elbow With O-ring 8mm – 1/4" M BSP PU Hose Fitting
At a Glance: 8mm push-in tube connection to 1/4" Male BSP thread with an O-ring seal in a compact 90° elbow.
A neat corner turn with extra sealing confidence for everyday pneumatic work. The AirCraft Elbow With O-ring 8mm-1/4" M BSP PU Hose Fitting connects 8mm tubing to a 1/4" BSP female port using a quick push-in connection, giving you a tidy 90° elbow right at the connection point. The integrated O-ring supports sealing at the port face on compatible connections, helping reduce leak risk in compressed-air systems on compressors, regulators, FRLs, manifolds and pneumatic tools.
Quick push-in tube connection combined with an O-ring at the thread to help deliver a tidy, leak-resistant result in compact pneumatic installations.
Free shipping on orders over R2000!
- Satisfaction Guaranteed
- Quality Spares, Accessories & Tools
- Secure Payments
Description
AirCraft Elbow With O-ring 8mm – 1/4" M BSP PU Hose Fitting
At a Glance: 8mm push-in tube connection to 1/4" Male BSP thread with an O-ring seal in a compact 90° elbow.
A neat corner turn with extra sealing confidence for everyday pneumatic work. The AirCraft Elbow With O-ring 8mm-1/4" M BSP PU Hose Fitting connects 8mm tubing to a 1/4" BSP female port using a quick push-in connection, giving you a tidy 90° elbow right at the connection point. The integrated O-ring supports sealing at the port face on compatible connections, helping reduce leak risk in compressed-air systems on compressors, regulators, FRLs, manifolds and pneumatic tools.
Quick push-in tube connection combined with an O-ring at the thread to help deliver a tidy, leak-resistant result in compact pneumatic installations.
Specifications
| Description | Spec |
|---|---|
| Brand | AirCraft |
| Cat No. | SPL08-G02 |
| Product Type | Push-In Pneumatic Elbow Fitting (O-Ring Seal) |
| Tube Size | 8mm (OD) |
| Thread Type | BSP |
| Thread Size | 1/4" Male |
| Seal Type | O-Ring |
| Connection Angle | 90° Elbow |
| Typical Use | Compressed air / pneumatic tubing lines (PU/Nylon) |
Features
- Push-in 8mm tube connection Fast, tool-free tube installation and removal for easy maintenance.
- 1/4" Male BSP thread Common BSP size for pneumatic ports on regulators, valves and air service units.
- O-ring sealed thread Helps enhance sealing at the port face on compatible ports and fittings.
- 90° elbow configuration Improves routing and reduces tube stress to help prevent kinks.
Benefits
- Neater air lines: Turns the tube cleanly at the port for a more compact, professional installation.
- Improved leak resistance: O-ring support plus correct tube insertion helps minimise air loss.
- Quicker servicing: Push-in design speeds up tube swaps and system changes.
Extra Information
- Use with 8mm OD PU or nylon pneumatic tubing. Square-cut tube ends give the best seal.
- Thread check: This fitting is 1/4" Male BSP. Confirm your port is BSP (not NPT) before installation.
- O-ring sealing works best on compatible port faces. Depending on your equipment, a suitable thread sealant may still be recommended.
Pro Tip
- Seat the O-ring properly and keep the port face clean—tighten sensibly (don’t crush the O-ring), then leak-test with soapy water.
Safety
- Isolate and depressurise the air system before installing or removing pneumatic fittings.
- Wear eye protection when working with compressed air and pressurised lines.
- Do not over-tighten—excess force can damage threads, distort sealing faces or crush the O-ring.
- After installation, leak-test the joint before returning equipment to service.
- Use only within the rated limits of your pneumatic system and with compatible tubing/materials.
Additional information
| Weight | 0,02 kg |
|---|
