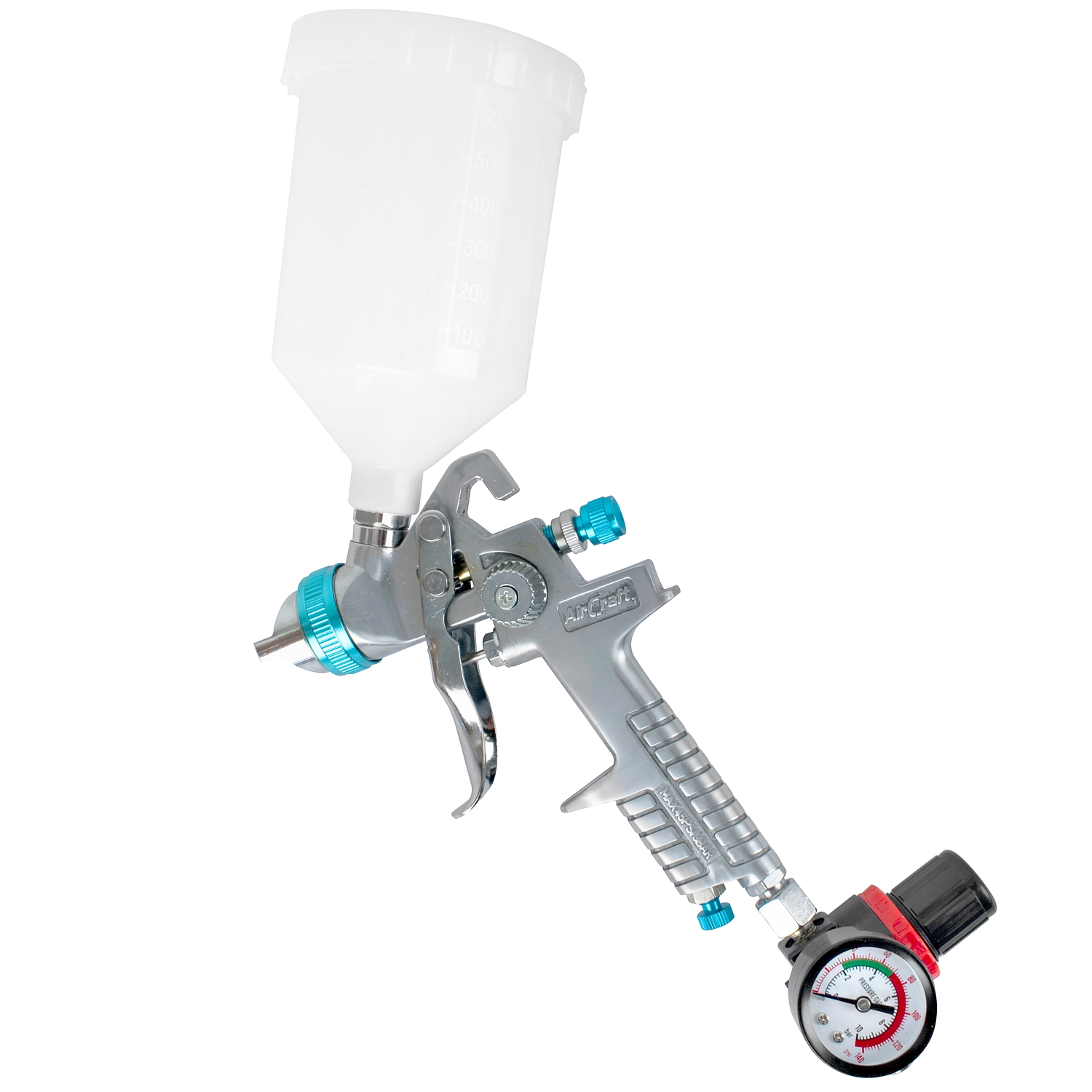

Aircraft Spray Gun Hvlp 1.4Mm Nozzle With Spare 1.7Mm Nozzle Kit And Regulator

Description

The success behind an HVLP spray gun, is the low amount of overspray.

This is
achieved by having an improved atomization, by using a lower air pressure and a
higher volume of airflow.

Included in kit:

• 1/4 BSP In-line regulator with gauge
• Ø 1.7mm nozzle kit



HVLP – High Volume Low Pressure

Description	Specification
Working pressure	45-60 Psi (3 – 4 Bar)
Cup capacity	600 ml
Feed type	Gravity feed
Airflow consumption	170 – 300 l/min
Air inlet hread	1/4 BSP
Nozzle/Needle	Ø 1.4mm



Features:

• Cast aluminium body construction
• Comfortable, balanced and easy to control by having the gravity cup angled slightly backwards
• Light in weight, thanks to the aluminium body
• Easy spray pattern and fluid control adjustment
• Stainless steel fluid tip and needle
• Rotatable aircap to change spray pattern direction

Tips and techniques

When sprayfinishing, it’s always advised to keep the spray gun parallel to the workpiece surface. The distance from the surface of the workpiece should be the width of the spray pattern.

The lower the pressure of the air, the lower the chance to have bounce-back
(overspray). The pressure should only be increased when the spray pattern is
uneven – paint focused in the middle when the fan setting is wide.

consider safety for your health and the people around you
General safety suggestions: It is advisable to always have the following items nearby and in a good condition Eye protection – clean and scratch free Hearing protection – quality earmuffs Dust masks – discard old and dirty masks Gloves – for easy handling of material and hand protection
Wear Gloves	Eye Protection	Hearing Protection	Dust Mask
